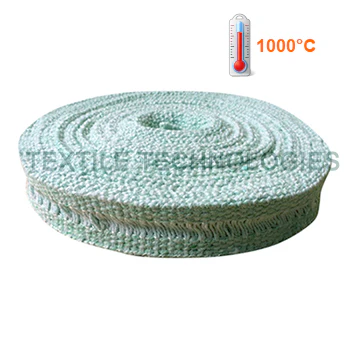

Bio Soluble Ladder Tape
- The bio soluble fibre insulation is rated to 1000°C in optimum conditions.
- The glass reinforcement is rated to 550°C.
- The wire reinforcement is rated to 1000°C.
- Central warp yarns have been removed to create a ladder section to enable application over bolts suitable for boiler, furnace and kiln car door seals.
Applications
- Webbing / Ladder Door Seals for Furnaces / Kilns / Industrial Boilers.
Bio Soluble Ladder Tape Range
|
Collection Code
|
Yarn
|
Reinforcement
|
Weave
|
Type / Enhancement
|
Possible Thicknesses
|
Parent Code
|
Possible Widths
|
|---|---|---|---|---|---|---|---|
|
290
|
Bio Soluble Ladder
|
Wire
|
Plain
|
Loomstate
|
1.5/2mm
|
290-1149
|
15mm-500mm
|
|
290
|
Bio Soluble Ladder
|
Wire
|
Plain
|
Loomstate
|
3mm
|
290-1178
|
15mm-500mm
|
|
290
|
Bio Soluble Ladder
|
Wire
|
Plain
|
Loomstate
|
5/6mm
|
290-1285
|
15mm-500mm
|
|
Collection Code
|
Yarn
|
Reinforcement
|
Weave
|
Type / Enhancement
|
Possible Thicknesses
|
Parent Code
|
Possible Widths
|
|---|---|---|---|---|---|---|---|
|
291
|
Bio Soluble Ladder
|
Glass
|
Plain
|
Loomstate
|
1.5/2mm
|
291-1149
|
15mm-500mm
|
|
291
|
Bio Soluble Ladder
|
Glass
|
Plain
|
Loomstate
|
3mm
|
291-1178
|
15mm-500mm
|
|
291
|
Bio Soluble Ladder
|
Wire
|
Plain
|
Loomstate
|
5/6mm
|
290-1285
|
15mm-500mm
|
FAQs
What is bio soluble ladder tape (alkaline earth silicate)?
Bio Soluble ladder tape, also known as alkaline earth silicate ladder tape, is a high-performance insulation material made from bio soluble fibres that are designed for high temperature applications. Unlike traditional materials, it is designed to be safe for human health, offering thermal protection without the risk of irritation or harm.
At Textile Technologies Europe Ltd, we supply premium bio soluble ladder tape that meets the latest safety standards and performance requirements.
What is the main benefit of bio soluble ladder tape over traditional insulation materials?
Bio soluble ladder tape is an environmentally friendly and safer alternative to traditional ceramic and glass fibre tapes, offering the same high-performance thermal insulation without the risk of irritation or harm. It is bio-degradable and non-toxic, making it safer for both workers and the environment.
What are the applications of bio soluble ladder tape?
- Thermal insulation of pipes, valves, and other equipment in industrial applications
- Furnace and boiler insulation
- Heat shields and fire protection systems
- Automotive exhaust systems
- Insulating gaskets and seals
At Textile Technologies Europe, we supply bio soluble ladder tape for a variety of high temperature applications, offering flexible, high-quality products for industries like automotive, aerospace, and petrochemical.
Why should I choose Textile Technologies Europe Ltd for bio soluble ladder tape?
Textile Technologies Europe Ltd is a leading UK supplier of bio soluble ladder tape. We are known for our:
- Expertise in high temperature insulation
- Customisation options for various applications
- Comprehensive product range, ensuring that we meet the specific needs of each customer
- Exceptional customer service and fast delivery
We are committed to providing safe and efficient insulation solutions for your high-performance needs.
What is the temperature resistance of bio soluble ladder tape?
Bio soluble ladder tape can withstand continuous operating temperatures of up to 1000°C, making it ideal for use in extreme industrial environments where high levels of thermal protection are required. Textile Technologies Europe Ltd ensures that our bio soluble ladder tapes meet or exceed these performance standards.
How does bio soluble ladder tape compare to other insulation materials?
- Health and safety: It is non-toxic, non-irritating, and bio-degradable
- Temperature resistance: It offers similar or superior thermal insulation to traditional materials
- Environmental benefits: It is more eco-friendly and can be safely disposed of
At Textile Technologies Europe, we offer bio soluble ladder tape that provides superior safety and performance for industrial applications.
Is bio soluble ladder tape safe to handle?
Yes, bio soluble ladder tape is safe to handle, unlike traditional ceramic and glass fibres that can cause irritation or respiratory issues. It is designed to be non-irritating and non-toxic, making it a safer option for workers in high temperature environments.
How are bio soluble ladder tapes made?
Bio soluble ladder tapes are made from alkaline earth silicate fibres, which are spun into a durable, flexible tape. The fibres are bio soluble and break down naturally in the body, unlike traditional refractory insulation materials. At Textile Technologies Europe Ltd, we ensure that our bio soluble ladder tapes are manufactured to meet industry safety and performance standards.
What sizes of bio soluble ladder tape are available?
- Width: 25 mm to 100 mm
- Thickness: 1 mm to 5 mm
- Custom sizes available upon request
We can provide tailored solutions to meet the specific requirements of your application, ensuring that you get the best performance and value.
What industries use bio soluble ladder tape?
- Automotive (exhaust insulation, gaskets)
- Aerospace (engine insulation, heat shields)
- Oil & Gas (pipeline insulation, fireproofing)
- Petrochemical (furnace insulation)
- Steel manufacturing (kiln insulation, heat shields)
At Textile Technologies Europe, we supply high performance bio soluble ladder tape for these demanding industries.
Can bio soluble ladder tape be used for fire protection?
Yes, bio soluble ladder tape is an excellent material for fire protection applications. Its high temperature resistance and non-combustible properties make it ideal for heat shields, fire barriers, and other insulation systems that require fireproofing and thermal insulation.
How can I order Ceramic Ladder Tape from Textile Technologies Europe Ltd?
Ordering is simple! Visit our website to choose your required product or contact our sales team to discuss your specific needs. We offer quick order fulfilment and worldwide shipping.
Is bio soluble ladder tape environmentally friendly?
Yes, bio soluble ladder tape is made from eco-friendly materials. The alkaline earth silicate fibres used in ladder tape are bio soluble and non-toxic, meaning they break down naturally in the environment and pose no risk to ecosystems or human health. Textile Technologies Europe Ltd is committed to supplying sustainable insulation solutions.
Can bio soluble ladder tape be used in exhaust systems?
Yes, bio soluble ladder tape is an ideal material for automotive exhaust systems due to its high temperature resistance and flexibility. It is used in exhaust manifold insulation, under-hood insulation, and heat shields to protect critical components from heat damage. Textile Technologies Europe Ltd provides custom solutions for automotive applications.
How long does bio soluble ladder tape last?
Bio soluble ladder tape has a long service life when used in appropriate conditions. It provides consistent thermal insulation and will perform well for several years in high-temperature applications, depending on the specific operating environment.
How do I install bio soluble ladder tape?
Bio soluble ladder tape can be easily installed by wrapping it around pipes, valves, or other equipment. It can be secured with metal fasteners, stainless steel wire, or adhesive. For best results, Textile Technologies Europe Ltd offers expert guidance on proper installation techniques.
Can bio soluble ladder tape be used for high-pressure applications?
Yes, bio soluble ladder tape is designed to withstand high temperatures and pressures, making it suitable for applications such as high pressure pipelines, furnaces, and boiler systems. Textile Technologies Europe Ltd can provide tailored solutions for specific pressure-rated applications.
What thickness should I choose for bio soluble ladder tape?
The thickness of bio soluble ladder tape depends on your specific insulation needs. Thicker tapes (3–5 mm) are generally used for high heat and high stress applications, while thinner tapes (1–2 mm) may be more suitable for low to medium temperature environments. Textile Technologies Europe offers expert consultation to help you select the ideal thickness for your project.
Can bio soluble ladder tape be laminated?
Yes, bio soluble ladder tape can be laminated with various materials such as aluminium foil or silicone coatings for enhanced durability, protection, and heat reflection. Textile Technologies Europe Ltd provides laminated versions of bio soluble ladder tape for more demanding applications.
Is bio soluble ladder tape durable?
Yes, bio soluble ladder tape is designed to be highly durable and capable of withstanding harsh environments. Its flexibility and resistance to degradation make it ideal for long-term use in industries where high temperature insulation is required.
How does bio soluble ladder tape perform in high humidity?
Bio soluble ladder tape performs well in humid environments, as it retains its thermal properties even when exposed to moisture. However, for continuous exposure to water or moisture, a protective coating or lamination may be recommended.
Can I buy bio soluble ladder tape in bulk?
Yes, Textile Technologies Europe Ltd offers bulk buy options.
What is Bio Soluble Ladder Tape?
Bio soluble ladder tape is a specialist high performance solution within modern technical textiles, designed for demanding high temperature insulation and sealing environments. Manufactured from advanced bio soluble fibres, these ladder tapes act as a safer direct replacement for traditional insulation materials such as harmful asbestos and older ceramic fibre products.
The unique construction of bio soluble ladder products involves central warp yarns removed to create a flexible ladder section, allowing the tapes to be installed over bolts suitable for door seals, kiln car door seals, and access points in boiler systems. This ability to enable application around fixings makes bio soluble ladder tape a highly suitable option for complex industrial applications.
Manufactured by textile technologies europe ltd, these bio soluble ladder tapes are engineered to deliver consistent thermal insulation, excellent temperature resistance, and strong durability under optimum conditions, often reaching up to 1000 C depending on reinforcement type.
Materials, Construction and Performance
All bio soluble ladder tapes are manufactured using high purity bio soluble fibres and yarns developed specifically for high temperature environments. These fibres provide excellent thermal stability, low thermal conductivity, and strong resistance to most chemicals, making them ideal for industrial use.
The bio soluble fibre insulation core is supported by either glass reinforcement or wire reinforcement, enhancing mechanical strength and durability. Glass fibre reinforcement is typically rated to 550 C, while wire reinforced options provide higher strength for more demanding high temperature applications.
The structure of bio soluble ladder tape ensures good resistance to thermal cycling, molten metal splash, and mechanical stress. These materials also maintain flexibility while delivering consistent sealing performance across varying temperatures and operating conditions.
Compared with glass ladder tape, bio soluble ladder solutions offer a more advanced body soluble composition, reducing long-term exposure concerns while maintaining excellent thermal industrial performance.
Applications and Industrial Use
Bio soluble ladder tape is widely used across a variety of industrial applications where reliable sealing and thermal insulation are required. These ladder tapes are commonly used in:
- Door seals for furnaces, kilns and boiler systems
- Kiln car door seals and inspection hatches
- Exhaust insulation and hot pipes
- Pre heat insulation zones and heat source protection
- Welding applications and stress relieving processes
- Fire protection barriers and curtains
The flexible ladder section allows the tape to conform around irregular shapes and fixings, ensuring effective sealing even in high pressure applications. Because of their low thermal conductivity and strong thermal insulation properties, these tapes help reduce heat loss and improve system efficiency.
In addition, bio soluble ladder tapes can be used alongside other glass, ceramic, and insulation materials to create complete thermal protection systems tailored to specific requirements.
Sizes, Supply and Technical Support
Our full range of bio soluble ladder tape is manufactured to meet a wide variety of industrial applications, with multiple thicknesses parent code and parent code possible widths available. Each roll length is designed to suit different installation needs, ensuring flexibility across projects.
At textile technologies europe, we provide full product support and technical advice to help you select the correct bio soluble ladder solution. Whether you require self adhesive options, enhanced coatings, or specific reinforcement types, our team can assist with your specific requirements.
All products are supplied ready for installation, and additional enhancements such as adhesive backing can aid applying the tape in situ. For more technical advice, detailed specifications, or to discuss your application, please contact textile technologies europe ltd or visit the main website.
As one of the world leaders in high temperature technical textiles, Textile Technologies Europe ensures all bio soluble ladder tapes deliver consistent performance, environmentally friendly benefits, and reliable thermal insulation across the most demanding applications.
